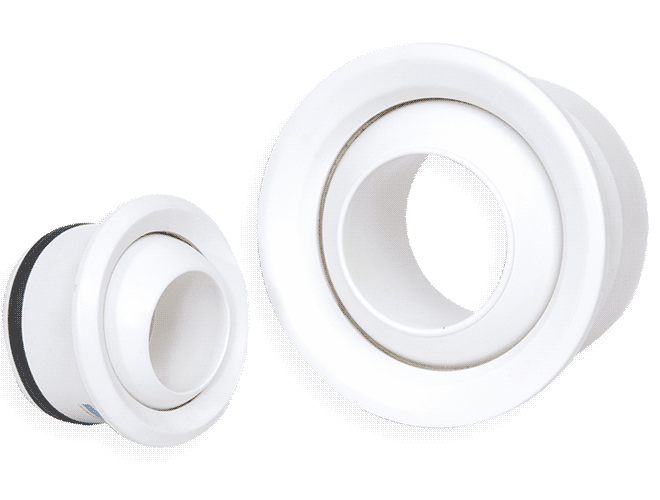

The ONH Jet Nozzle Type 2 is designed to distribute air homogeneously into comfort zones in large areas with high ceilings, such as sports complexes, airports, atriums, and factories.
Description
Material and Usage Features
This nozzle is suitable for horizontal air discharge applications, with the inner sphere capable of 360° rotation on its own axis and ±30° movement on both vertical and horizontal axes. This feature allows adjustment of the discharge air’s flow characteristics for both summer and winter conditions. The inner sphere can be easily adjusted manually or controlled optionally with an electric motor, enabling conditioned air to be directed to hard-to-reach areas. The outer flange and double-walled inner sphere are made from aluminum sheets. Standard finishes include electrostatic powder coating in RAL 9010 and RAL 9016, with screw-mounted installation. Custom RAL colors or unfinished options are also available upon request. When airflow adjustment is required, an integrated column damper, color-matched to the product, can be used.
Dimensions:
- Ø250
- Ø315
- Ø400
Features:
- Decorative design
- Long throw distance
- Aluminum construction
- Adjustable for summer and winter positioning
